Figure similar
undefined - TSM-AG
Axle: External threaded shaft including flat nuts, galvanized.

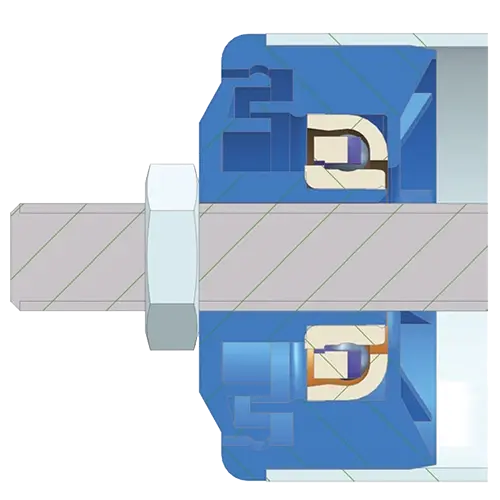

Bearing: Plastic-bearing base within deep groove ball bearings and Labyrinth seal. Also available in stainless version (TSMN..AGN).
Hardness: 102 - 140 HB
Choose your variant
Choose your desired dimensions
Go to product table
Product information

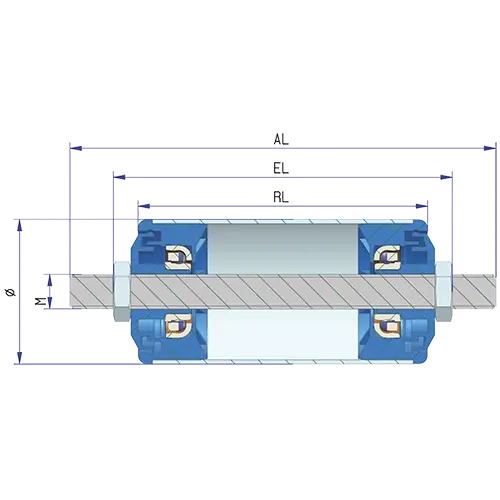

| Description | TSM50*100AG10E116A146 |
|---|---|
| Load capacity (kg) | 160 |
| Roller Ø (mm) | 50 |
| Axle Ø (mm) | 10 |
| Roller length (mm) | 100 |
| Fitting length (mm) | 116 |
| Axle length (mm) | 146 |
| Thread size | M10 |
| Axle model | AG=Externally threaded axle |
| Bearing type | Ball bearings |
| Axle | Externally threaded |
Additional Information:
The mentioned lengths are only samples for lengths. Please let us know the required roller length, other lengths will result from the given length according to the data sheet above.
As the carrying rollers are always produced with the requested individual dimensions, a return and / or cancellation, even during delivery time, is excluded.
Technical note:
For carrying rollers, all load capacities only apply when the load is distributed over the entire length of the roller. We cannot provide any information for point loads.
How high does the load capacity need to be?
