conductive polyurethane wheel

Antistatic polyurethane wheels and castors with aluminum and cast rims

Here you will find detailed information on our antistatic polyurethane wheels made of specially developed materials and material mixtures, coated on aluminum or cast rims. These are used to protect your systems and transport equipment from electrostatic discharge.

These antistatic wheels and castors are ideal for ATEX zones and industrial environments where a controlled and safe discharge of electrostatic charges is required.

SCHWALB's antistatic solutions provide reliable protection for operators, sensitive electronic components and areas where electrostatic charge poses a safety or functional risk. They are used in particular in electronics production, automated logistics, clean room technology and the chemical industry - wherever ESD control is an essential technical requirement.

conductive polyurethane wheel aluminium rim

PAK-AS series

Wheel: Aluminum rim, with grooved ball bearings. Tire made of antistatic polyurethane, gray, non-marking, permanently bonded to the rim. Hardness approx. 91 Shore A, resistance ≤ 50 MΩ ( ≤105 Ohm ).

Article Wheel Ø Wheel width Hub length Axle-Ø Load capacity
PAK080/25/30/12AS 80 25 30 12 150
PAK080/30/40/12AS 80 30 40 12 126
PAK080/30/40/15AS 80 30 40 15 126
PAK100/30/30/15AS 100 30 30 15 140
PAK100/40/40/12AS 100 40 40 12 175
PAK100/40/40/15AS 100 40 40 15 175
PAK100/50/60/20AS 100 50 60 20 280
PAK100/50/60/25AS 100 50 60 25 280
PAK125/30/30/15AS 125 30 30 15 175
PAK125/40/50/20AS 125 40 50 20 210
PAK125/50/60/20AS 125 50 60 20 259
PAK150/40/40/20AS 150 40 40 20 350
PAK160/50/60/20AS 160 50 60 20 350
PAK160/50/60/25AS 160 50 60 25 350
PAK175/50/60/20AS 175 50 60 20 490
PAK180/50/60/20AS 180 50 60 20 490
PAK200/50/60/20AS 200 50 60 20 560
PAK200/50/60/25AS 200 50 60 25 560
PAK250/50/60/30AS 250 50 60 30 700
conductive polyurethane wheel convex

PAK-AS/BA series

Wheel: Aluminum rim, with grooved ball bearings. Tire made of antistatic polyurethane, grey, non-marking, convex running surface, permanently bonded to the rim. High load capacity, ideally suited for heavy-duty castors. Hardness approx. 91 Shore A, resistance ≤ 50 MΩ ( ≤105 Ohm ).

Article Wheel Ø Wheel width Hub length Axle-Ø Load capacity
PAK100/30/40/12AS/BA 100 30 40 12 200
PAK100/40/40/12AS/BA 100 40 40 12 200
PAK125/50/60/20AS/BA 125 50 60 20 370
PAK160/50/60/20AS/BA 160 50 60 20 500
PAK200/50/60/20AS/BA 200 50 60 20 800
PAK200/50/60/25AS/BA 200 50 60 25 800
PAK250/50/60/25AS/BA 250 50 60 25 1000
conductive polyurethane wheel cast rim

PGK-AS series

Wheel: Cast iron rim, with grooved ball bearings. Tire made of antistatic polyurethane, gray, non-marking, permanently bonded to the rim. High load capacity, ideally suited for heavy-duty castors. Hardness approx. 91 Shore A, resistance ≤ 50 MΩ ( ≤105 Ohm ).

Article Wheel Ø Wheel width Hub length Axle-Ø Load capacity
PGK080/20/10/12AS 80 20 10 12 150
PGK080/36/36/15AS 80 36 36 15 250
PGK098/30/30/20AS 98 30 30 20 275
PGK125/25/25/15AS 125 25 25 15 250
PGK125/30/40/20AS 125 30 30 20 300
PGK125/35/35/20AS 125 35 35 20 350
PAK125/40/50/20AS 125 40 50 20 400
PAK150/40/40/25AS 150 40 40 25 500
PAK150/50/60/20AS 150 50 60 20 800
PAK175/35/35/20AS 175 35 35 20 600
PAK175/40/40/20AS 175 40 40 20 650
PAK180/40/40/20AS 180 40 40 20 700
PAK200/40/40/20AS 200 40 40 20 800
PAK250/50/60/25AS 250 50 60 25 1400
PAK300/100/100/40AS 300 100 100 40 1960
PAK400/100/100/40AS 400 100 100 40 4000
PAK400/125/125/40AS 400 125 125 40 4600
PAK500/100/100/50AS 500 100 100 50 4500

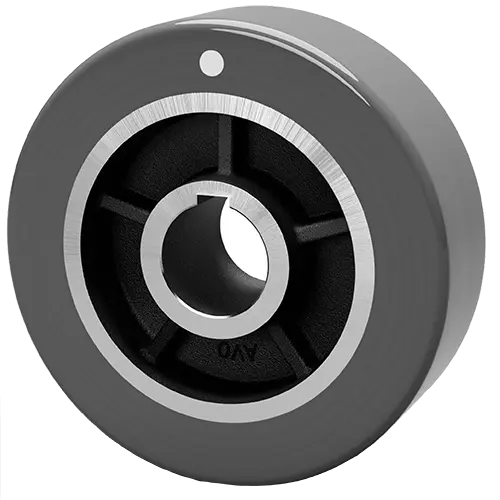

conductive polyurethane wheel cast rim

PGG-AS series

Wheel: Cast iron rim, with  with fitting bore H7 or alternative with  keyway according to DIN 6885/1 (than please replace "H7" to "PFN" in the item-code). Tire made of antistatic polyurethane, gray, non-marking, permanently bonded to the rim. High load capacity, ideally suited for heavy-duty castors. Hardness approx. 91 Shore A, resistance ≤ 50 MΩ ( ≤105 Ohm ).

Article Wheel Ø Wheel width Hub length Axle-Ø Load capacity
PGG125/40/60/30H7/AS 125 40 60 30 H7 400
PGG150/50/60/30H7/AS 150 50 60 30 H7 650
PGG160/50/50/30H7/AS 160 50 50 30 H7 750
PGK160/50/50/20H7/AS 160 50 50 20 H7 750
PGK200/50/60/25H7/AS 200 50 60 25 H7 1100
PGK200/50/50/30H7/AS 200 50 50 30 H7 1100
PGK200/80/80/65H7/AS 200 80 80 65 H7 1600
PGK200/80/80/40H7/AS 200 80 80 40 H7 1600
PGK200/80/80/30H7/AS 200 80 80 30 H7 1600
PGK200/80/80/25H7/AS 200 80 80 25 H7 1600
PGK250/60/60/55H7/AS 250 60 60 55 H7 1400
PGK250/60/60/24H7/AS 250 60 60 24 H7 1400
PGK250/80/80/40H7/AS 250 80 80 40 H7 1800
PGK250/100/100/45H7/AS 250 100 100 45 H7 2000
PGK300/60/60/50H7/AS 300 60 60 50 H7 2100
PGK300/80/80/72H7/AS 300 80 80 72 H7 2500
PGK300/100/100/40H7/AS 300 100 100 40 H7 2800
PGK300/150/150/60H7/AS 300 150 150 60 H7 3300
PGK400/125/125/80H7/AS 400 125 125 80 H7 4200
PGK400/150/150/50H7/AS 400 150 150 50 H7 4400
PGK500/10/100/60H7/AS 500 100 100 60 H7 4500
conductive polyurethane wheel steel rim

PSG-AS series

Wheel: Steel iron rim, with fitting bore H7 or alternative with  keyway according to DIN 6885/1 (than please replace "H7" to "PFN" in the item-code). Tire made of antistatic polyurethane, gray, non-marking, permanently bonded to the rim. High load capacity, ideally suited for heavy-duty castors. Hardness approx. 91 Shore A, resistance ≤ 50 MΩ ( ≤105 Ohm ).

Article Wheel Ø Wheel width Hub length Axle-Ø Load capacity
PSG100/40/44/15H7/AS 100 40 44 15 H7 300
PSG100/40/40/20H7/AS 100 40 40 20 H7 300
PSG125/40/50/20H7/AS 125 40 50 30 H7 400
PSG200/50/50/30H7/AS 200 50 50 30 H7 1100
PSG200/50/60/25H7/AS 200 50 60 25 H7 1100
PSG250/60/60/25H7/AS 250 60 60 25 H7 1400
