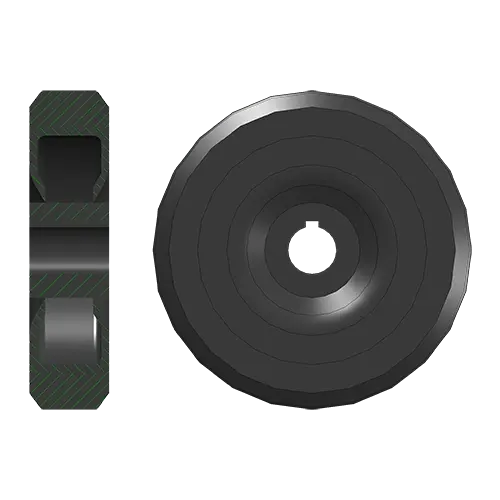

Figure similar
Elastic Rubber Wheels - ESBG-PFN
Wheel: Rim made of pressed and welded steel, painted, with fitting bore and keyway according to DIN 6885/1. Tyre made of elastic solid rubber, non removable fixed with rim.
Ø 250 - 500 mm
500 - 7.000 kg
-20 °C to +80 °C
Hardness: 70° +/- 5° Shore A
Hardness: 70° +/- 5° Shore A
Choose your variant
Wheel Ø (mm)250
Wheel width (mm)60
Axle Ø (mm)25
Hub length (mm)60
Go to product table
Product information
| Description | ESBG250/060/60/25PFN |
|---|---|
| Load capacity (kg) | 500 |
| Wheel Ø (mm) | 250 |
| Axle Ø (mm) | 25 |
| Hub length (mm) | 60 |
| Wheel width (mm) | 60 |
| Bearing type | Keyway |
Ground Suitability
Suitable for:- Hard, flat, plain, without obstacles, clean, no edges or sills etc.
- Hard, flat, with obstacles, not clean, with edges or sills etc.
- Hard, flat, plain, clean, with grooves or seams.
- Uneven, not clearly definable.
- Smooth, flat, plain, clean.
How high does the load capacity need to be?
